BENRUS – catalog mecanisme (descriere si/sau imagini) | 1920-1945
Lista are la baza "Benrus - material catalog" (cca. 1945-1947) si "WMDAA catalog - sectiune Benrus" (cca. 1957) precum si diverse precizari facute pe forumurile pasionatilor.
Unde va fi posibil voi incerc sa fac trimitere catre bazele de mecanisme prezentate de catre site-ul Dr. Roland Ranfft .
Pe masura ce vor fi gasite voi incerca sa pun fiecarui model si o imagine actuala.
* * *
marime | model | an lansare Benrus
- - - - - - - - - - - - - - - - - - - -

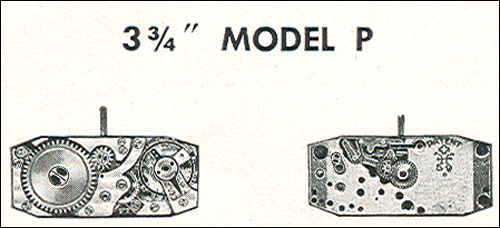

3 ¾” model P (cca. 1920-1930)
- model P: 17 jewels, baza FHF 59-21, 3.75 x 9.25"

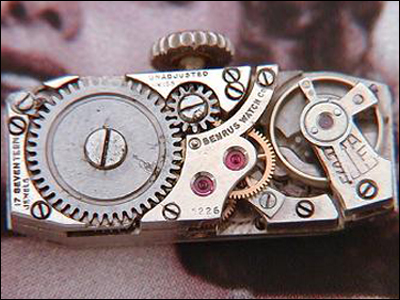

foto: Benrus 3 ¾” model P
4 ¼” model Y (cca. 1920-1930)
- model Y: 17 jewels, baza ETA 746, 4.5 x 10"

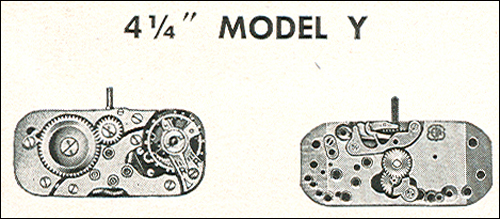

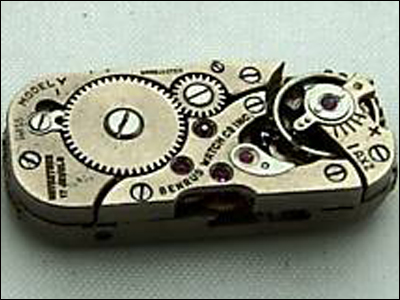

foto: Benrus 4 ¼” model Y1

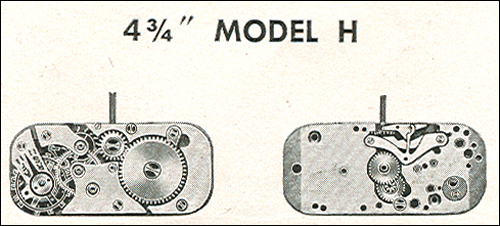

4 ¾” model H (cca. 1920-1930)
- n/a, baza PESEUX 10, 4.75 x 11’’
5” model Q (cca. 1930-1945)
baza AS 976, 5 x 7"
- model Q 10: 7 jewels, straight escape wheel pivots;
- model Q 11: 17 jewels, 2 conical pivots;
- model Q 12: 17 jewels, 1 conical pivot, center top jewel

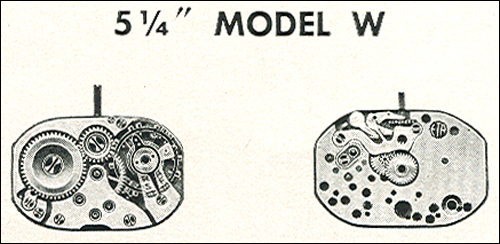

5 ¼” model W (cca. 1920-1930)
- model W: 15 jewels, baza ETA 761, 5.25 x 8.5"

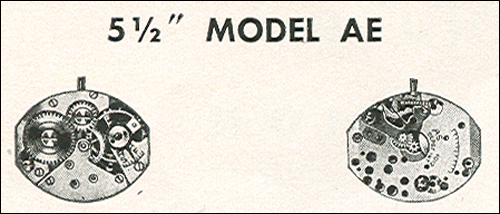

5 ½” model AE (cca. 1930-1945)
baza AS 1012, 5.5 x 6.75"
- model AE 10: 7 jewels, straight escape wheel pivots;
- model AE 11: 17 jewels, 2 conical pivots;
- model AE 12: 17 jewels, 1 conical pivot, center top jewel
- model AE 112: 17 jewels, 1 conical pivot, center top jewel
- model AE 13: 17 jewels, 1 conical pivot, special regulator

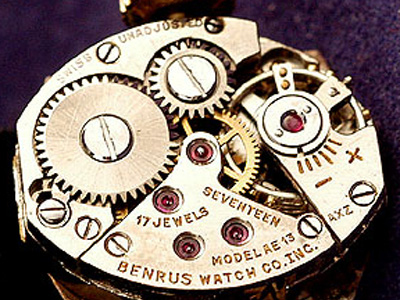

foto: Benrus 5 ½” model AE13

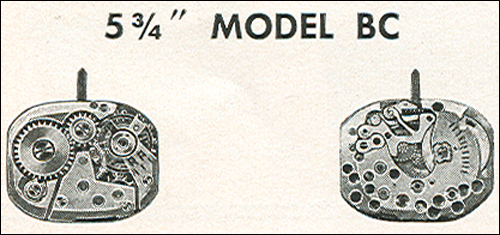

5 ¾” model BC (cca. 1930-1945)
baza ETA 1075, 5.75 x 7"
- model BC 1: 17 jewels, 1 conical pivot, center top jewel

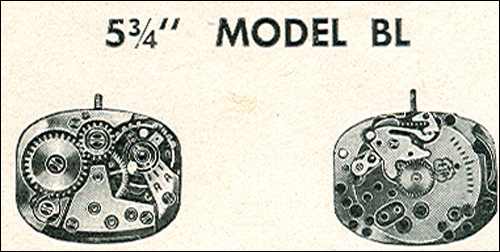

5 ¾” model BL (cca. 1930-1945)
baza ETA 1185, 5.75 x 7"
- model BL: 17 jewels

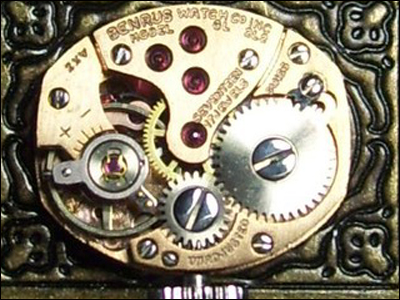

foto: Benrus 5 ¾” model BL

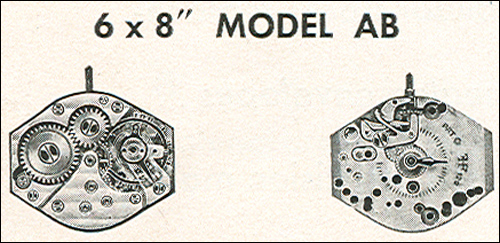

6 x 8” model AB (cca. 1930-1945)
baza FHF 123, 6.75 x 8"
- model AB 1: 7 jewels, straight escape wheel pivots;
- model AB 2: 17 jewels, 1 conical pivot, center top jewel
- model AB 3: 15 jewels, straight escape wheel pivots;
- model AB 4: 15 jewels, straight escape wheel pivots;
- model AB 6: 17 jewels, 1 conical pivot, center top jewel
- model AB 10: 7 jewels, straight escape wheel pivots;
- model AB 11: 17 jewels, 2 conical pivots;
- model AB 12: 17 jewels, 1 conical pivot, center top jewel
- model AB 13: 17 jewels, 2 conical pivots;
- model AB 14: 15 jewels, straight escape wheel pivots;
foto: Benrus 6 x 8” model AB6

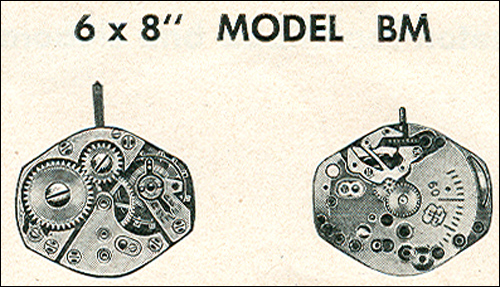

6 x 8” model BM (cca. 1930-1945)
baza FHF 60, 6.75 x 8"
- model BM 1: n/a
- model BM 2: n/a
- model BM 401: 21 jewels

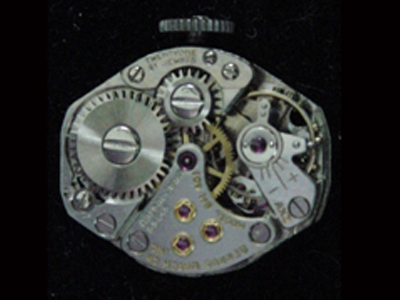

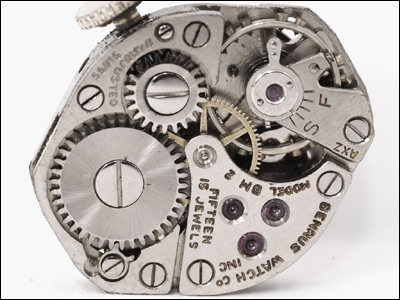

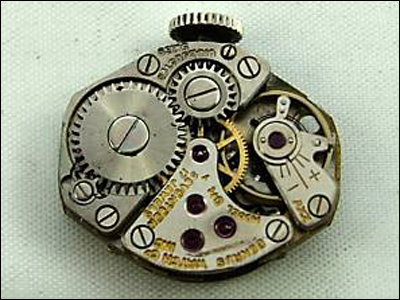

foto: Benrus 6 x 8” - model BM 1 | model BM 2 | model BM 401

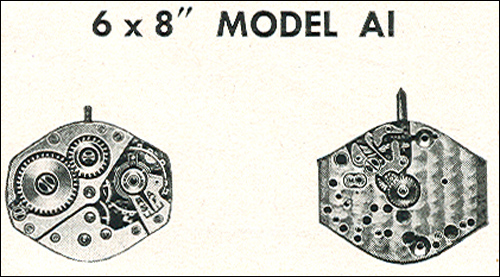

6 x 8” model AI (cca. 1920-1930)
baza FHF 120, 6.75 x 8"
- model AI 1: n/a

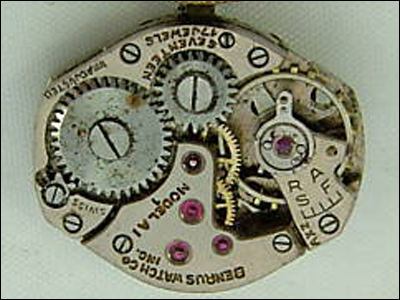

foto: Benrus 6 x 8” - model AI 1

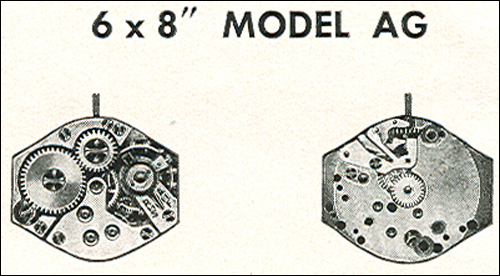

6 x 8” model AG (cca. 1920-1930)
- n/a

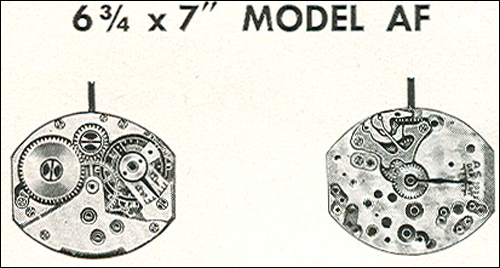

6 ¾ x 7” model AF (cca. 1920-1930)
baza AS 1023, 6.75 x 7.75"
- model AF 16: n/a

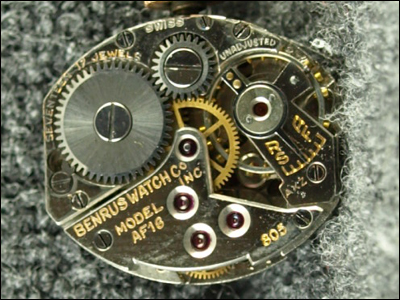

foto: Benrus 6.75 x 7.75” - model AF 16

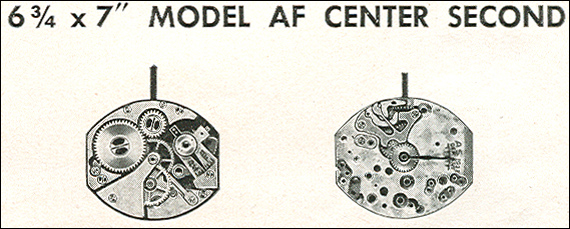

6 ¾ x 7” model AF – center second (cca. 1920-1930)
- n/a

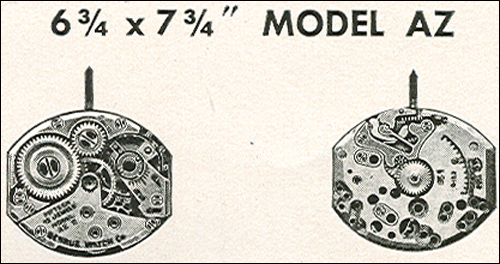

6 ¾ x 7 ¾” model AZ (cca. 1930-1945)
- model AZ 1: 17 jewels, 1 conical pivot, center top jewel;
- model AZ 2: 15 jewels, straight escape wheel pivot;

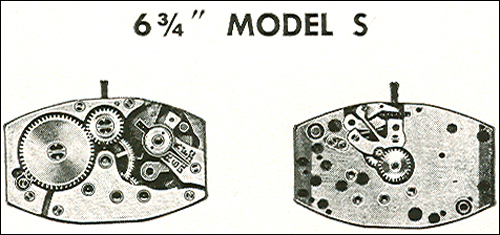

6 ¾” model S (cca. 1920-1930)
- n/a

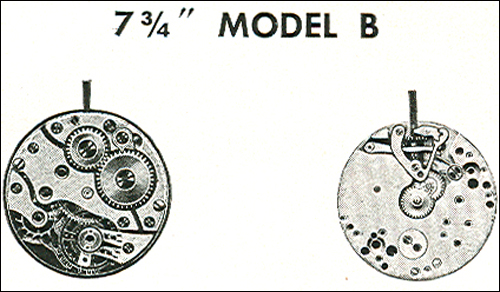

7 ¾” model B (cca. 1920-1930)
- n/a

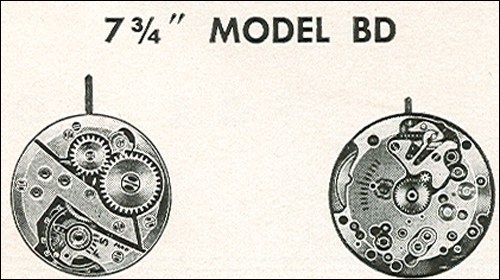

7 ¾” model BD (cca. 1930-1945)
- model BD 1: 17 jewels, 1 conical pivot, center top jewel;
- model BD 2: 15 jewels, straight escape wheel pivot;

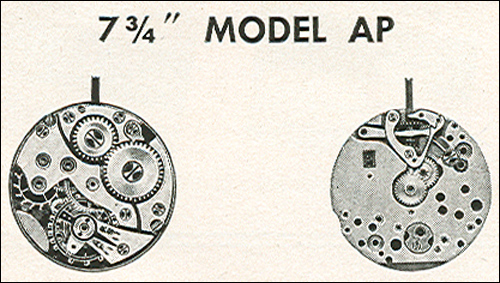

7 ¾” model AP (cca. 1930-1945)
- model AP 10: 7 jewels, straight escape wheel pivot;
- model AP 12: 15 jewels, straight escape wheel pivot;
- model AP 11: 17 jewels, 1 conical pivot, center top jewel;

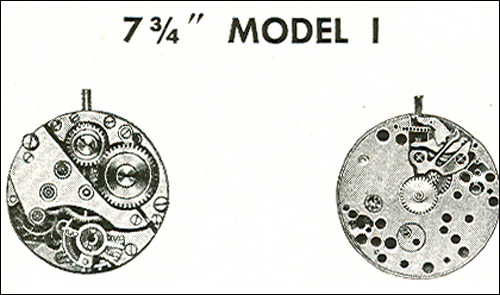

7 ¾” model I (cca. 1920-1930)
- n/a

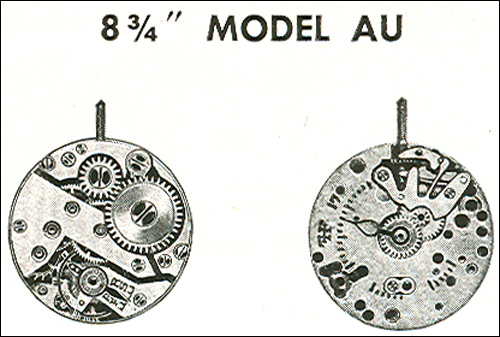

8 ¾” model AU (cca. 1920-1930)
- n/a

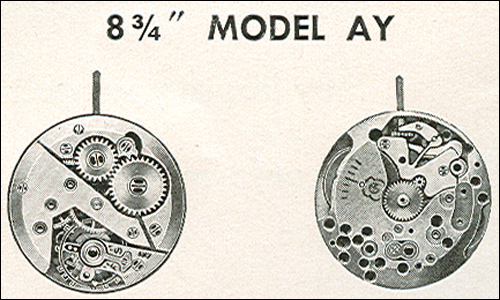

8 ¾” model AY (cca. 1930-1945)
- model AY 1: 17 jewel, 1 conical pivot, center top jewel;
- model AY 2: 15 jewel, straight escape wheel pivot;
- model AY 11: 17 jewel, 1 conical pivot, special balance staff-low;
- model AY 12: 15 jewel, straight escape wheel pivot, special balance staff-low;

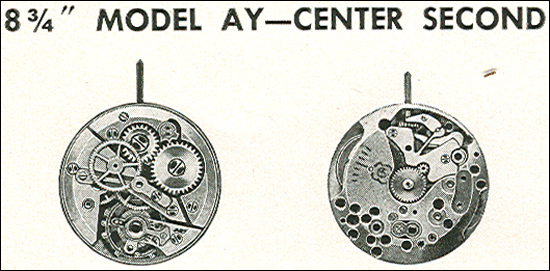

8 ¾” model AY – center second (cca. 1930-1945)
- model AY 3: 17 jewel , 1 conical pivot, center top jewel;
- model AY 13: 17 jewel, 1 conical pivot, center top jewel, balance staff-low;

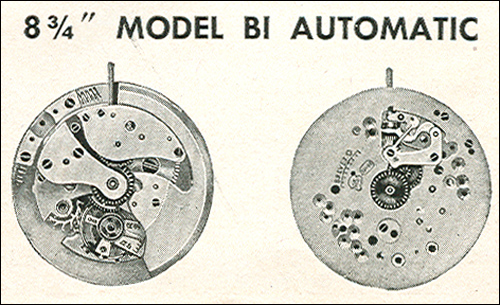

8 ¾” model BI – automatic (cca. 1930-1945)
- n/a

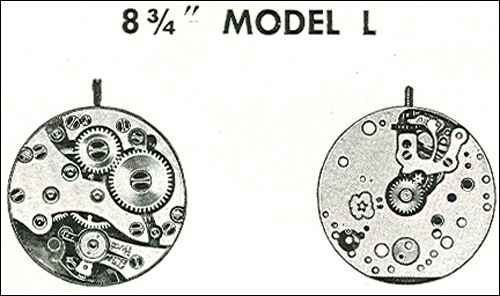

8 ¾” model L (cca. 1920-1930)
- n/a

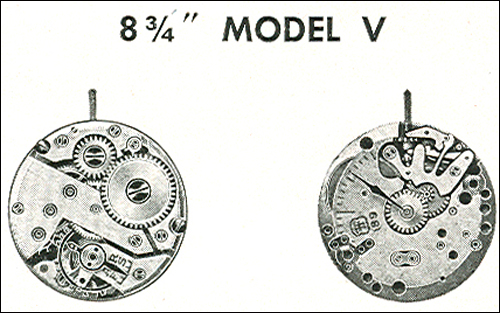

8 ¾” model V (cca. 1920-1930)
- n/a

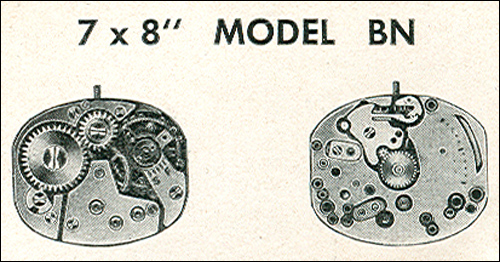

7 x 8” model BN (cca. 1930-1945)
- n/a

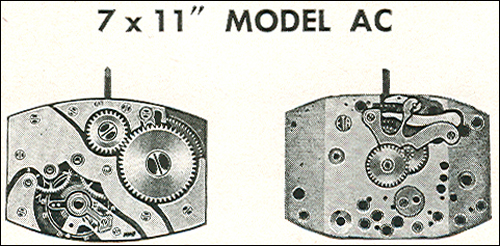

7 x 11” model AC (cca. 1930-1945)
- model AC 8: 17 jewels, 1 conical pivot, center top jewel, shock resistant;
- model AC 9: 17 jewels, 1 conical pivot, center top jewel, non-shock resistant;
- model AC 19: 17 jewels, 1 conical pivot, center top jewel, non-shock resistant;
- model AC 7: 17 jewels, 2 conical pivots, shock resistant;
- model AC 10: 7 jewels, straight escape wheel pivot;
- model AC 12: 15 jewels, straight escape wheel pivot;
- model AC 15: 15 jewels, straight escape wheel pivot;
- model AC 17: 17 jewels, special conical pivot on pallet arbor;

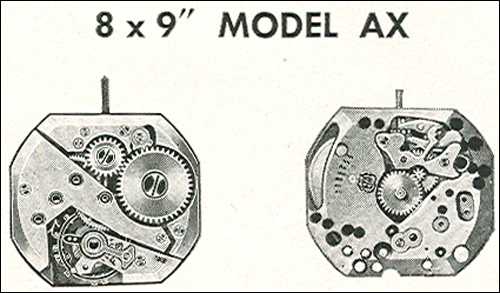

8 x 9” model AX (cca. 1930-1945)
- model AX 1: 17 jewels, 1 conical pivot, center top jewel;
- model AX 2: 17 jewels, 1 conical pivot, center top jewel;
- model AX 3: 17 jewels, 1 conical pivot, center top jewel;
- model AX 4: 17 jewels, 1 conical pivot, center top jewel;
- model AX 11: 17 jewels, 1 conical pivot, center top jewel, special shock-resistant;
- model AX 12: 17 jewels, 1 conical pivot, center top jewel; special shock-resistant;

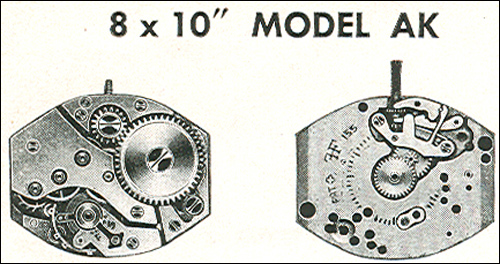

8 x 10” model AK (cca. 1930-1945)
- model AK 10: 15 jewels, straight escape wheel pivot;
- model AK 14: 15 jewels, straight escape wheel pivot;
- model AK 15: 15 jewels, straight escape wheel pivot;
- model AK 11: 17 jewels, 2 conical pivots;
- model AK 13: 17 jewels, 2 conical pivots;
- model AK 17: 17 jewels, 2 conical pivots;
- model AK 12: 17 jewels, 1 conical pivot, center top jewel;
- model AK 16: 17 jewels, 1 conical pivot, center top jewel;
- model AK 1: 17 jewels, 1 conical pivot, center top jewel;

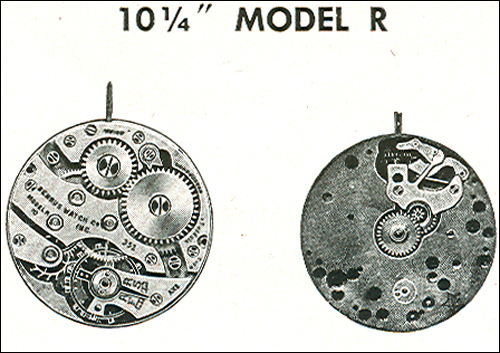

10 ¼” model R (cca. 1920-1930)
- n/a

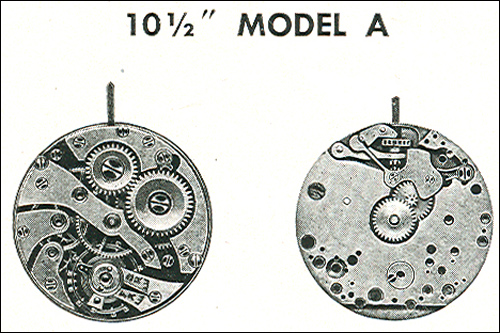

10 ½” model A (cca. 1920-1930)
- n/a

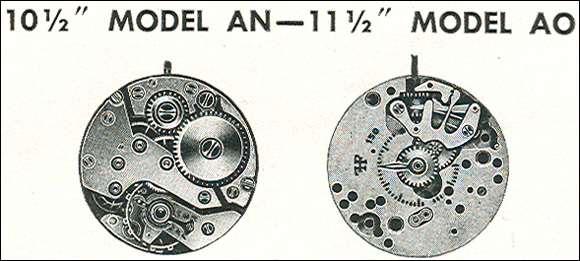

10 ½” model AN – 11 ½” model AO (cca. 1930-1945)
- model AN 11: 17 jewels, 1 conical pivot, center top jewel;
- model AN 13: 17 jewels, 1 conical pivot, center top jewel;
- model AN 14: 17 jewels, 1 conical pivot, center top jewel;
- model AN 15: 17 jewels, 1 conical pivot, center top jewel;
- model AN 18: 15 jewels, straight escape wheel pivot;
- model AN 10: 7 jewels, straight escape wheel pivot;
note: all material for model AN and AO is interchangeable except bridges and plates.

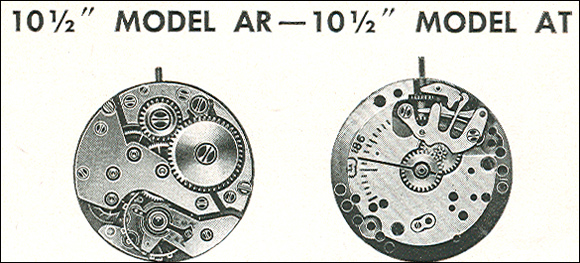

10 ½” model AR – 10 ½” model AT (cca. 1930-1945)
- model AR 1: 15 jewels, straight escape wheel pivot;
- model AR 13: 15 jewels, straight escape wheel pivot;
- model AR 14: 15 jewels, straight escape wheel pivot;
- model AR 18: 15 jewels, straight escape wheel pivot;
- model AR 11: 17 jewels, 1 conical pivot, center top jewel;
- model AR 12: 17 jewels, 1 conical pivot, center top jewel;
- model AR 15: 17 jewels, 1 conical pivot, center top jewel;
- model AR 19: 17 jewels, 1 conical pivot, center top jewel;
note: all material for model AR and AT is interchangeable except bridges and plates.

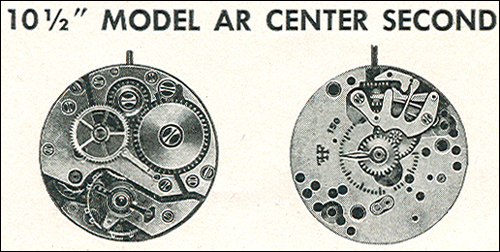

10 ½” model AR – center second (cca. 1930-1945)
- n/a

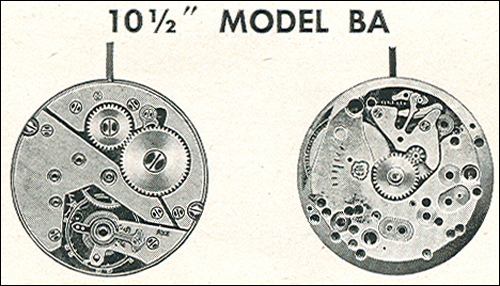

10 ½” model BA (cca. 1930-1945)
- model BA 1: 17 jewels, 1 conical pivot, center top jewel;
- model BA 2: 17 jewels, 1 conical pivot, center top jewel, special bevel and plates;
note: all material for model BA and BB is interchangeable except bridges and plates.

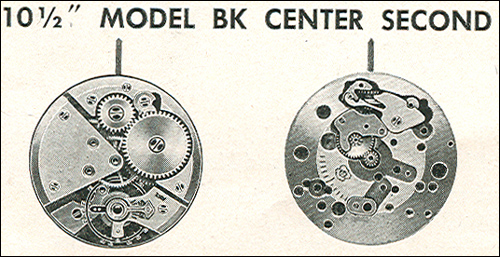

10 ½” model BK – center second (cca. 1930-1945)
- model BK 1: 15 jewels, straight escape wheel pivot;
- model BK 2: 17 jewels, 2 conical pivots;
note: all material for model BK and BH is interchangeable except bridges and plates.

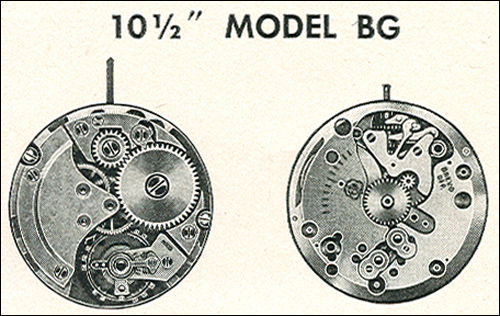

10 ½” model BG (cca. 1930-1945)
- model BG: 15 jewels, straight escape wheel pivot;
note: all material for model BG and BF is interchangeable except bridges and plates.

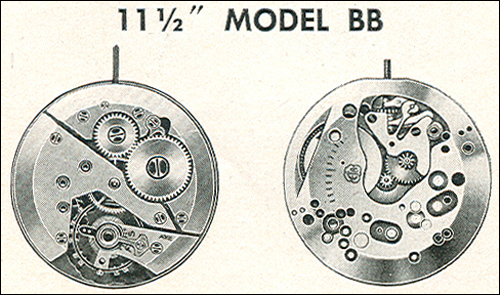

11 ½” model BB (cca. 1930-1945)
- model BB 1: 17 jewels, 1 conical pivot, center top jewel;
- model BB 4: 17 jewels, 1 conical pivot, center top jewel;
- model BB 11: 17 jewels, 1 conical pivot, center top jewel;
- model BB 2: 15 jewels, straight escape wheel pivot;
- model BB 3: 15 jewels, straight escape wheel pivot;
- model BB 12: 15 jewels, straight escape wheel pivot;
- model BB 13: 15 jewels, straight escape wheel pivot;
note: all material for model BA and BB is interchangeable except bridges and plates.

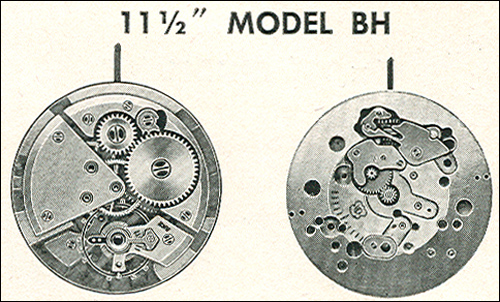

11 ½” model BH (cca. 1930-1945)
- model BH 1: 15 jewels, straight escape wheel pivot;
- model BH 2: 15 jewels, straight escape wheel pivot, special stop system;
note: all material for model BH and BK is interchangeable except bridges and plates.

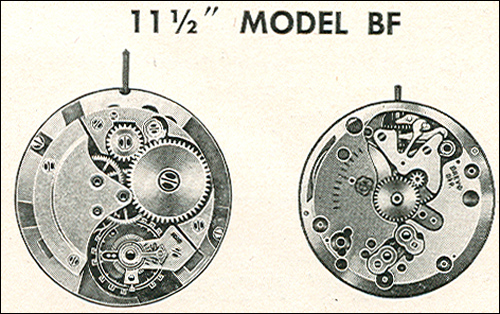

11 ½” model BF (cca. 1930-1945)
- model BF 1: 15 jewels, straight escape wheel pivot;
note: all material for model BF and BG is interchangeable except bridges and plates.
11 ½” model BR (cca. 1930-1945)
- n/a

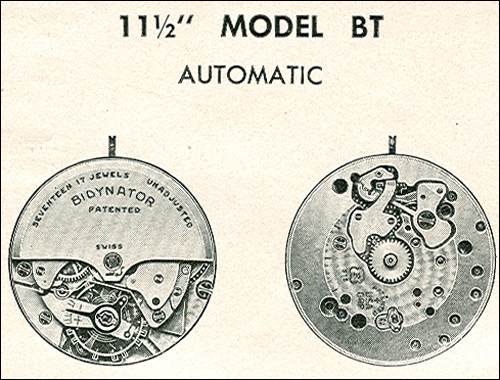

11 ½” model BT – automatic (cca. 1930-1945)
- n/a

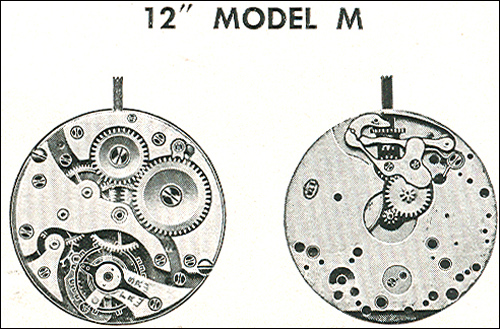

12” model M (cca. 1920-1930)
- n/a

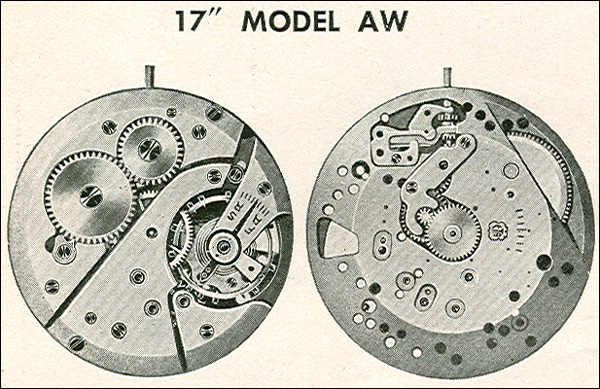

17” model AW (cca. 1920-1945)
- model AW 1: 15 jewels, straight escape wheel pivot;
- model AW 2: 17 jewels, 2 conical pivots;
- model AW 3: 17 jewels, 1 conical pivot, center top jewel;

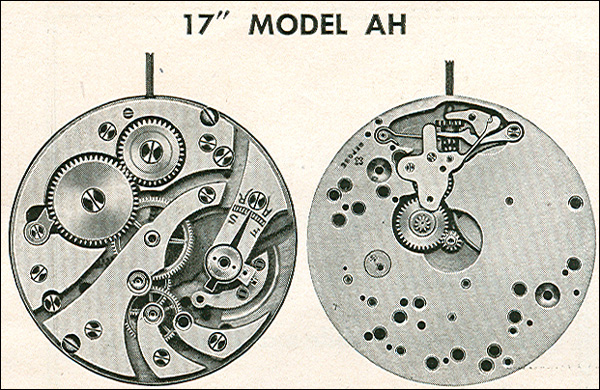

17” model AH (cca. 1920-1945)
- model AH 10: 15 jewels, straight escape wheel pivot;
- model AH 11: 15 jewels, straight escape wheel pivot;
- model AH 12: 17 jewels, 1 conical pivot, center top jewel;
(...in lucru!)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
